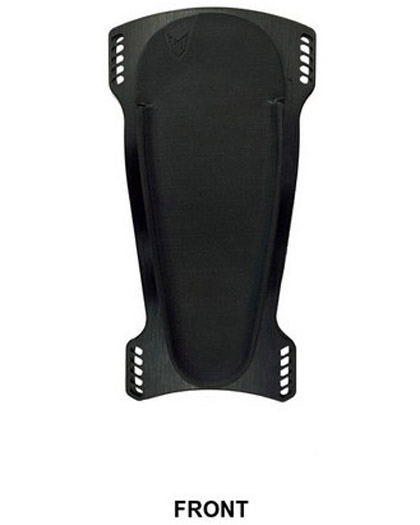

HO Ski Boot Adapter Plate Boot/Binding allows you to swap out the new Direct Connect footbed in an xMax or freeMAX waterski boot or a rear toe binding, and replace it with a traditional PLATE.
Installation Instructions
1. Remove the footbed from boot. For xMax and freeMax boots, the footbed is held in with 2 Velcro strips, 1 located towards the front, under the toes, and 1 located under the arch of the foot. Release the Velcro by slowly pulling upwards on the front of the footbed and then working towards the back. The footbed can then be slid out towards the front.
2. Turn the boot upside down. Unscrew the eight mounting screws. Keep these screws as you will use them to attach the new Adapter plate.
3. Remove the DirectConnect mounting plate.
4. Slide the new Max Adapter Plate complete with footbed into the front of the boot. Line up the new plate with the fastener holes on the boot.
5. Securely fasten the Adapter plate with the eight mounting screws from step 2.
